Graphtec Cutting Pro FC9000-75 Cutting Plotter

Brand: Graphtec
Product Code: GR-FC9000-75
Availability: Pre-Order

Add to Wish List / Compare this Product

£3,995.00

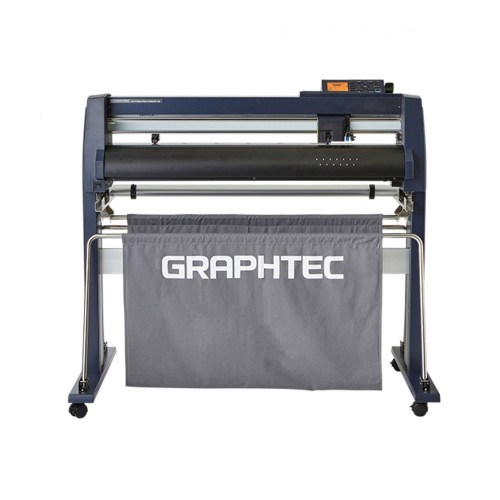

The Graphtec FC9000 Cutting Plotter

The Graphtec FC Series is the ultimate print finishing solution.

An FC Series Cutting Plotter provides a higher level of productivity and greater ease of use than any other cutting plotter on the market today.

Unlike other cutting plotters on the market, the FC Series comes as standard with media catch nets, networking capabilities, built-in cross-cutter, matching stand and is also customisable to further augment what is an already class leading product.

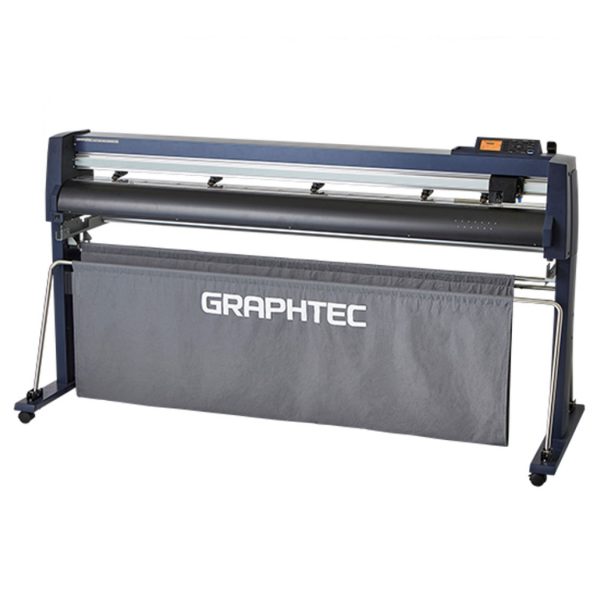

With 4 different widths available the FC is perfect for both small scale high volume users through to high demand wide format print shops who are looking for a highly functional print finishing solution to match up to their Solvent or UV printers.

With it’s unmatched cutting speed, powerful head pressure and included professional grade software the FC Series raises the bar to a totally new and incomparable level of performance, usability and functionality.

Class Leading Performance | Increased High Level Productivity | Premium Design & Build Quality

Machine Specifications:

Configuration: Grit Rolling Type
Drive Method: Digital Servo Drive System
Graphic Type LCD Display With Back Light

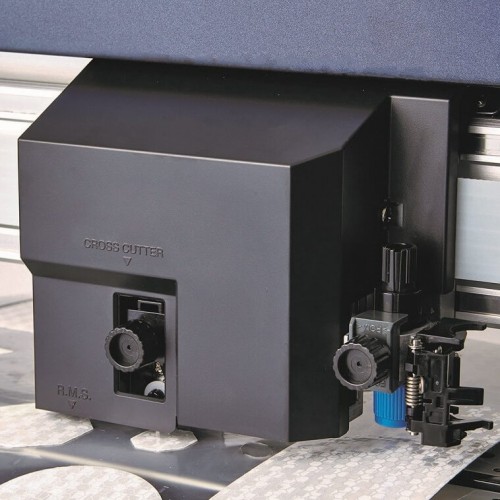

Built-In Cross Cutter
Networking Ethernet Port
Mountable Number Of Tools: 2 Tools (When Second Pen Kit Installed)
Maximum Cutting Force: 5.88N (600gf)
Maximum Cutting Speed: 1485mm/s

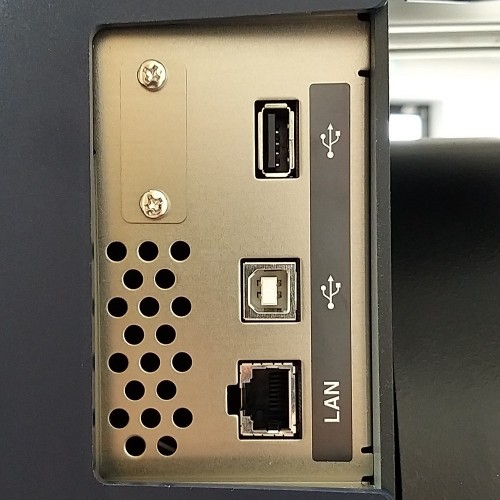

Interface: USB 2.0 Offline | USB 2.0 Cable
Buffer Memory: 2MB

Performance Specifications:

Media Tracking Distance: 15m Standard | 20m Enhanced With Take Up Spool Installed On 140 & 160 Versions
Minimum Character Size: Approx. 3mm Alphanumeric (Varies Depending On Character Font & Type Of Media)
Programmable Resolution: GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm | HP-GL™: 0.025 mm
Repeat-ability: Max. 0.1 mm In Plot up to 2m
Perforation Cutting: Yes (Performed By Force Control)
Die-Cutting: Yes
Kiss Cutting: Yes

Media Specifications:

Self-Adhesive Marking Film Up To 0.25mm Thick Or Less
PVC Film
Fluorescent
Reflective
Polyester Film (On Condition)
High Intensity Reflective Film (Diamond Grade | Engineer Grade)

Machine Includes:

Matching Stand
Rear Mounted Media Stocker
Media Catch Baskets (Front & Rear)
Power Cable (3 Pin UK Plug)
USB Cable: 2.9m Long
DVD-ROM
User Manual

Included Accessories:

Cutting Blade Holder: PHP33-CB09N-HS
Cutting Blade: CB09UB
Loupe: PM-CT-001 For Checking Blade Length & Condition
Fibre-Tipped Pen Holder: PHP31-FIBER
Water-Based Fibre Tipped Pen: KF700-BK

Optional Accessories:

2nd Pen Kit
Extra Push Roller Assembly
Flange Kit For Enhanced Media Tracking
Automatic Take Up Spool For 140cm & 160cm Versions

Graphtec FC9000 Series: Applications

The FC9000 Is Perfect For:

Large Format Sign Makers
Vehicle Wrapping Centres
Apparel Markets
Print & Cut Label And Sticker Creation

The FC9000 is The Best Plotter For:

Sign Vinyl
Large Format Print & Cut Media
High Intensity Reflective Vinyl
Paint Protection Films & Vehicle Wrap
Apparel Pattern Paper

Download Specification

Download Brochure

Cutter Specification
Max. Cuttable Area	762 mm x 50 m
Loadable Width	Max. 920 mm Min. 50 mm
Max. Cutting Force	600 gf (5.88 N) in 48 steps
Max. Cutting Speed	1485 mm/s (at 45 degree angle)
Interface	USB2.0 (Full speed) and Ethernet (10BASE-T/100BASE-TX)
Command Language	GP-GL / HP-GL emulation
Warranty	3 Year on-site
