Graphtec CE8000-60

Machine Specifications:

• Configuration: Grit Rolling Type
• Drive Method: Digital Servo Drive System
• Touch Panel Display (240dot x 128dot)
• Networking Wireless LAN
• Mountable Number Of Tools: 1 Tool
• Maximum Cutting Force: 450g
• Maximum Cutting Speed: Up To 900mm/s (60 model) 1000mm/s (130 Model)
• Perforation Cutting: Yes (Performed By Force Control)

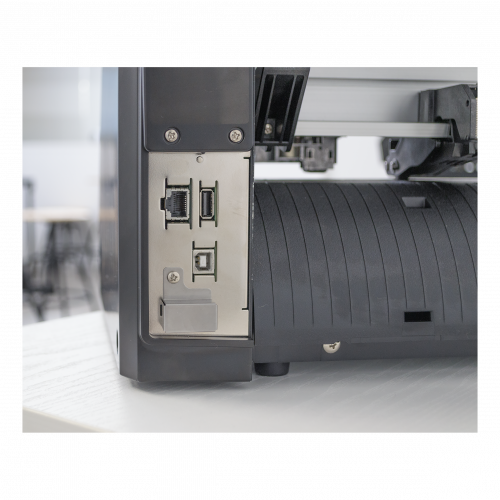

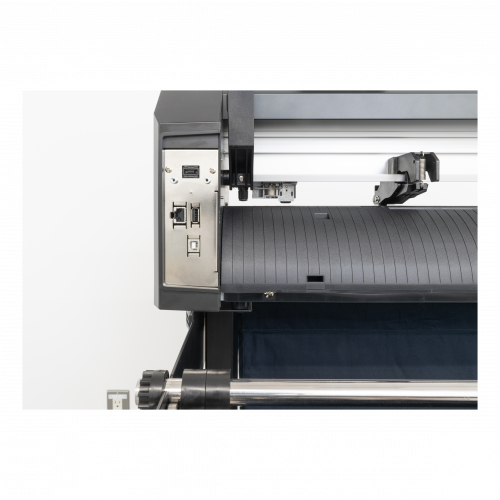

• Interface: USB 2.0 | Wireless LAN
• Buffer Memory: 2MB

Performance Specifications:

• Guaranteed Media Tracking Distance: Up To 5m when using basket, 2m without basket
• Minimum Character Size: Approx. 5mm Alphanumeric (Varies Depending On Character Font & Type Of Media)
• Programmable Resolution: GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm, HP-GL™: 0.025 mm
• Repeat-ability: Max. 0.1 mm In Plot up to 2m
• Media Type: Self-Adhesive Marking Film Up To 0.25mm Thick *High intensity reflective sheet not supported

Machine Includes:

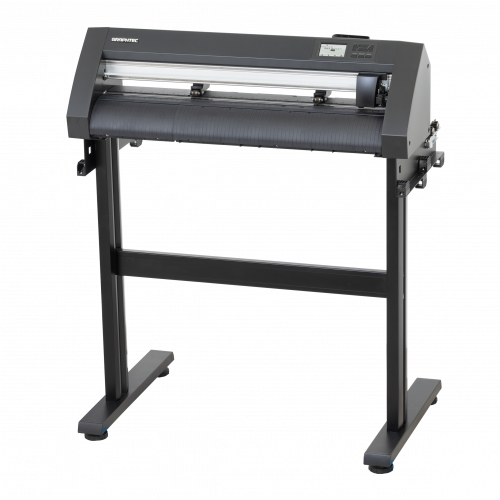

• Stand: 40cm Optional | 60cm & 130cm As Standard
• Roll Media Stocker: 40cm Model Only
• AC Power Cable
• Setup Manual

Included Accessories:

• Cutting Blade Holder: PHP33-CB09N-HS
• Cutting Blade: CB09UB

Optional Accessories:

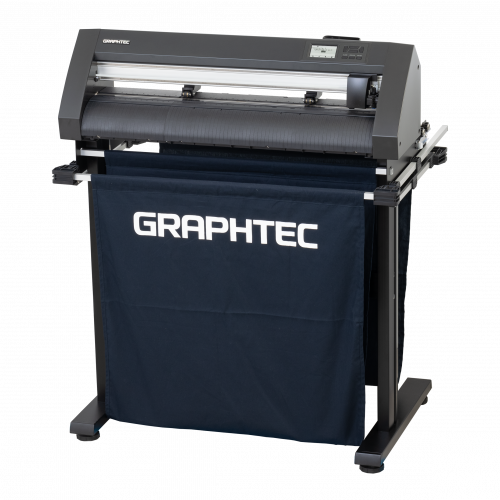

• Media Catch Baskets: PG0111 (60cm) | PG0112 (130cm)
• Carrier Sheet Table: 40cm | 60cm
• Roll Media Stocker: 60cm

Graphtec CE8000 Series: Operation

The CE8000 is easy to use which follows Graphtec’s ethos of ensuring all of their products are highly intuitive, simple to operate and extremely efficient.

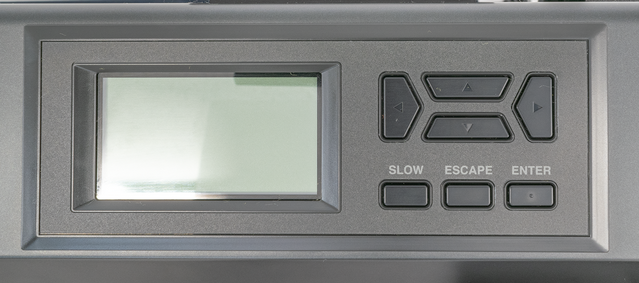

The plotter is driven by touch screen and tactile control panel which is used to quickly and easily adjust user settings, automatic registration mark sensing system and to support print and cut alignment which is crucial to ensure you achieve the best cut every time.
